As commercial and industrial rooftop solar projects continue to grow worldwide, TPO/PVC roofing systems have become increasingly popular due to their lightweight structure, waterproof performance, and long service life. To match these roofing systems, specialized TPO/PVC solar mounting bases are designed to provide secure installation while maintaining the integrity of the waterproof layer.

Modern TPO/PVC solar mounting solutions are generally divided into three main categories:

1. Flexible PV Mounting System (No-Drilling Type)

2. Medium / Mini TPO/PVC Mounting System – Rivet Nut Fixing

3. Heavy-Duty TPO/PVC Mounting System – Rivet Nut / Disc-Fastened Type

These systems are suitable for single-layer, double-layer, and multi-layer flexible roofing structures.

Flexible PV Mounting System (No-Drilling)

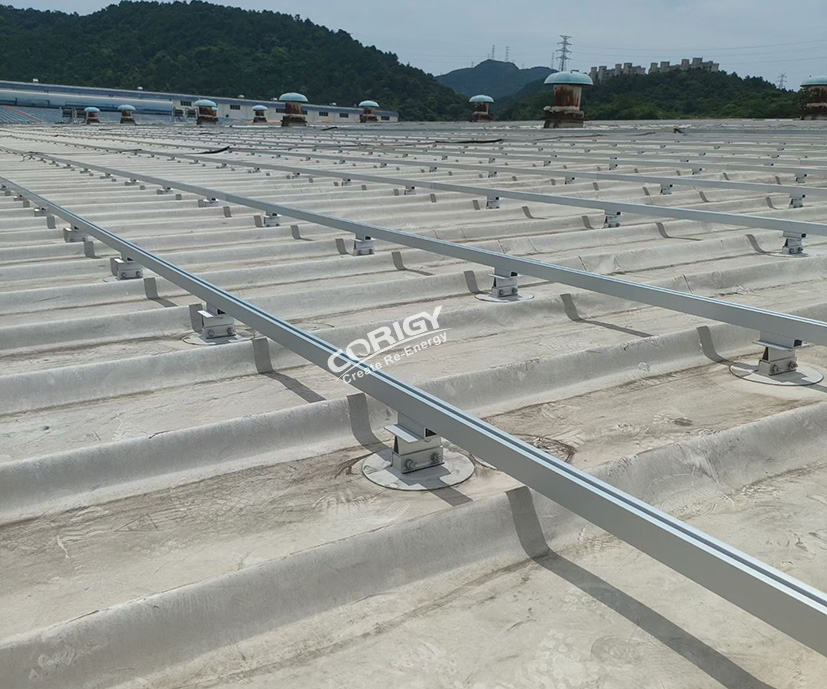

The no-drilling flexible mounting base is specially designed for membrane roofs where roof waterproof integrity is a key concern. Instead of penetrating the roof, the mounting base is directly welded onto the waterproof membrane through hot-air welding technology.

This solution offers several advantages:

· No roof penetration, reducing leakage risk

· Seamless integration with TPO/PVC waterproof membrane

· High weather resistance and long-term durability

· Lightweight structure suitable for flexible roofs

The mounting base usually consists of a weather-resistant PVC/TPO injection-molded base combined with an aluminum structure, forming a rigid-flexible integrated system.

However, no-drilling systems are generally not recommended for coastal areas or regions with extremely high wind loads, because wind uplift resistance requirements are much higher. In such projects, medium-duty or heavy-duty fixing solutions are often preferred.

Medium & Heavy-Duty TPO/PVC Mounting Systems

For projects requiring higher structural strength and wind resistance, medium-duty and heavy-duty systems are commonly used.

These systems typically use:

· 304 stainless steel mounting bases

· Rivet nut fixing systems

· Disc-fastened systems

· Hot-air welded waterproof integration

By combining mechanical fixing with waterproof membrane welding, the system achieves both excellent structural stability and waterproof reliability.

Such systems are widely used in:

· Industrial metal roofs

· Single-ply membrane roofing systems

· TMP integrated roofing systems

· Lightweight steel structure roofs

Typical Application Scenarios

TPO/PVC solar mounting systems are suitable for various rooftop conditions, including:

· Concrete roofs with fully bonded waterproof membranes

· Light steel structure roofs

· Integrated tile roofing systems

· Industrial and commercial flat roofs

The key requirement is that the roof surface must already have a waterproof membrane installed before mounting construction begins.

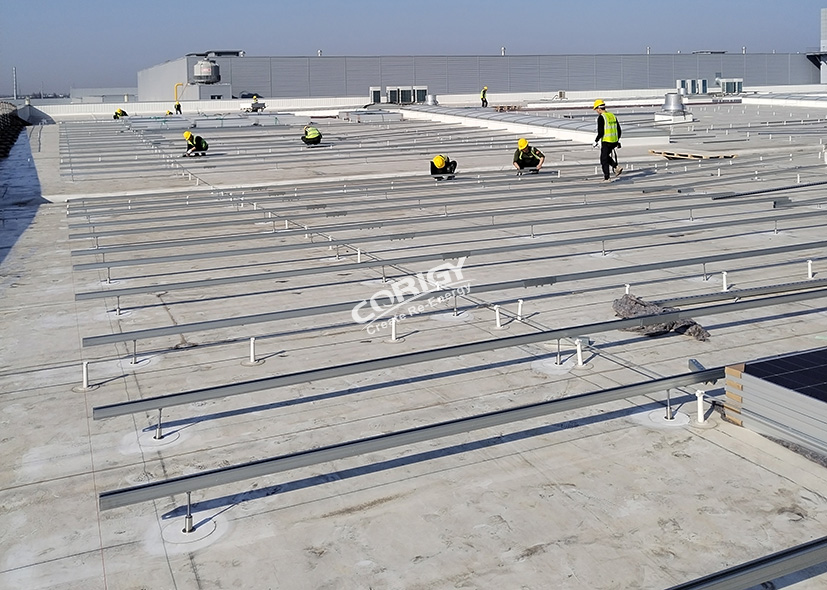

Professional Installation Process

A standard installation procedure usually includes:

1. Roof layout and positioning

2. Roof surface cleaning

3. Hot-air welding of the mounting base

4. Aluminum base installation

5. Solar mounting rail and bracket installation

This process ensures both waterproof performance and long-term structural safety.

TPO vs PVC Roofing Membranes

Many people find it difficult to distinguish between TPO and PVC roofing membranes.

In general:

· TPO membranes usually have better flexibility and often appear whiter in color.

· PVC membranes are typically softer and may have a slightly grayish appearance.

Both materials are widely used in commercial roofing systems, but the final mounting solution should always be selected according to roof structure, wind load requirements, waterproof standards, and project location.
